PPSU is a non -fixed -shaped, high -performance thermoplastic plastic. Compared with PSU and PEI, it has better impact resistance and chemical resistance.
| Color | Black | Natural color | Baby blue | Dark blue | Green | Yellow | Grey | Red | White |
| Color number | BL001 | N000 | BB09 | DB0099 | GR350 | Y159 | GG6126 | R8040 | W002 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Polymer performance/type | Unit | PPSU | Test standard |
| Fiber content | Not fill | ———— | |
| Tensile Strength | MPa | 72 | ISO 527-1/-2 |
| Tensile modulus | GPa | 2.2 | ISO 527-1/-2 |
| Elongation at break | % | 60-120 | ISO 527-1/-2 |
| Bending strength | MPa | 91 | ISO 178 |
| Flexural modulus | GPa | 2.4 | ISO 178 |
| Notched impact strength | J/m | No Break | ISO 180/IU |
| Heat distortion temperature 1.82MPa |
℃ | 210 | ISO 75-1/-2 |
| Linear thermal expansion coefficient flow direction |
ppm/℃ | 57 | ISO11359-1/-2 |
| Linear coefficient of thermal expansion in the transverse direction |
ppm/℃ | 57 | ISO11359-1/-2 |
| Water absorption rate24h | % | 0.4 | ISO 62 |
| Density | g/cm³ | 1.29 | ISO 1183 |
ps:This data is the average value of the material and cannot be used as the acceptance standard. The average value of linear thermal expansion is between 0-150 ° C.

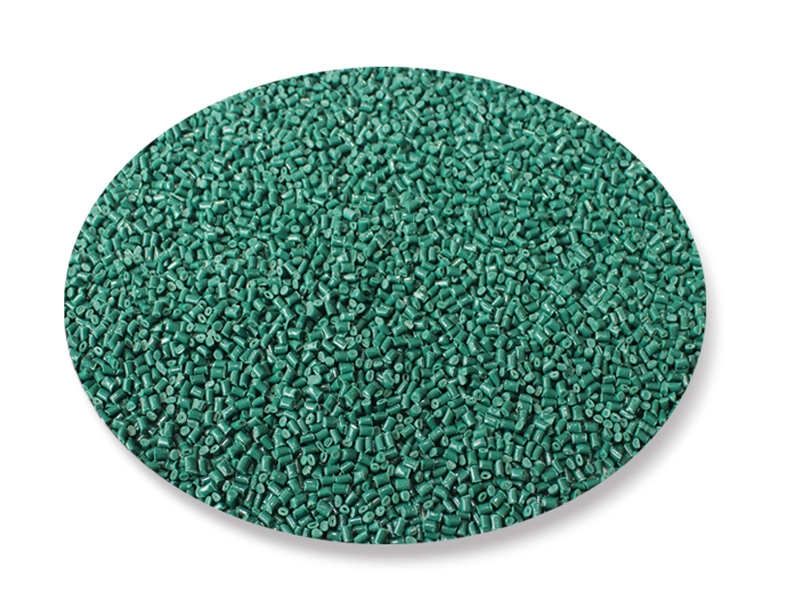

Particle-DR350 |
Particle-DB0099 |

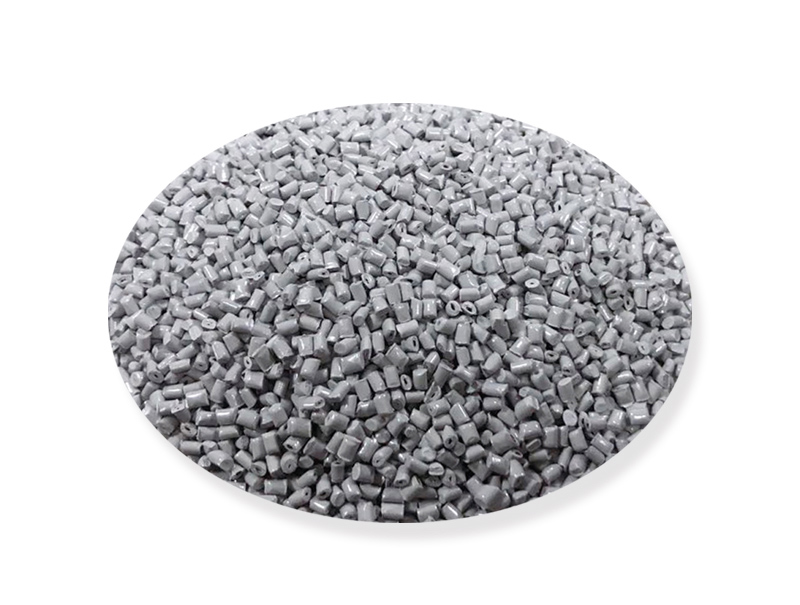

Particle-GG6126 |

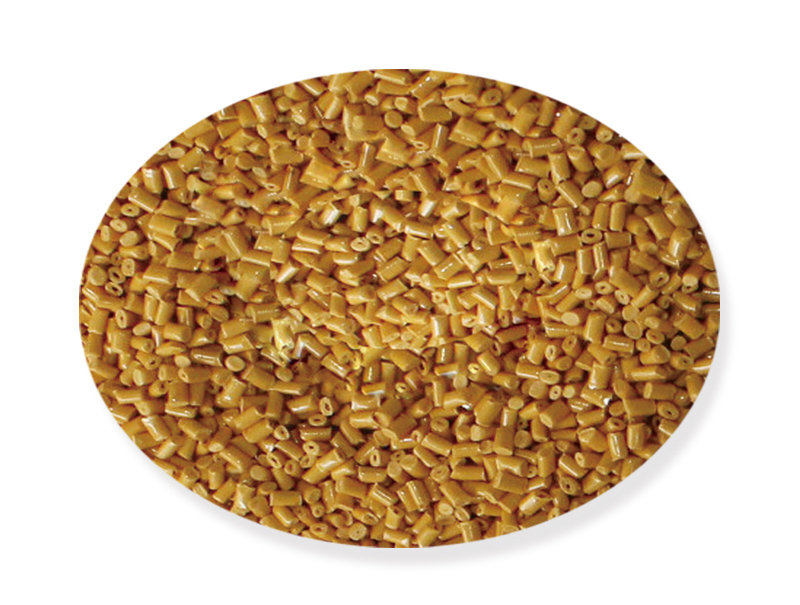

Particle-Y159 |

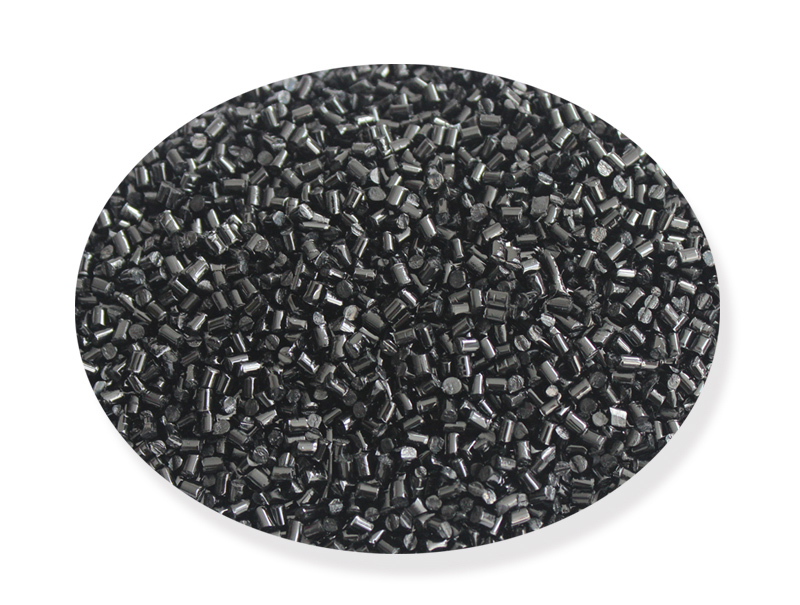

Particle-BL001 |

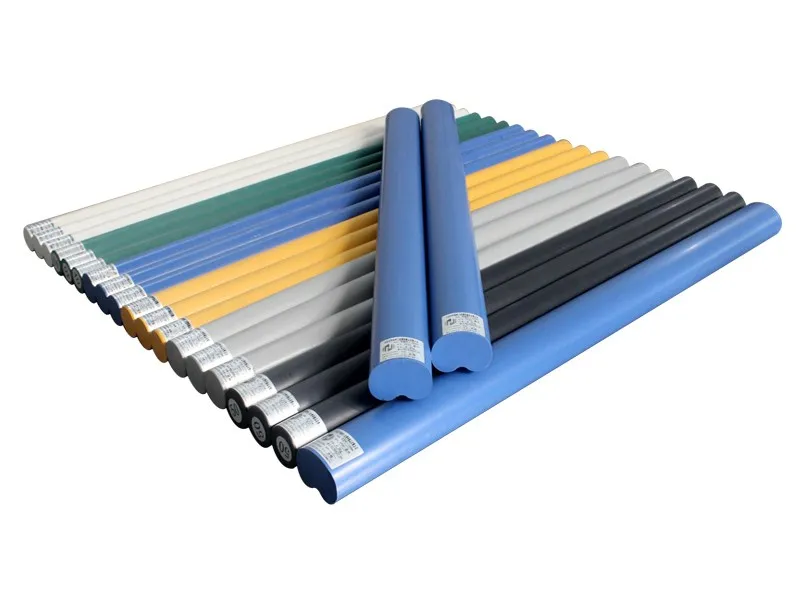

Profile |

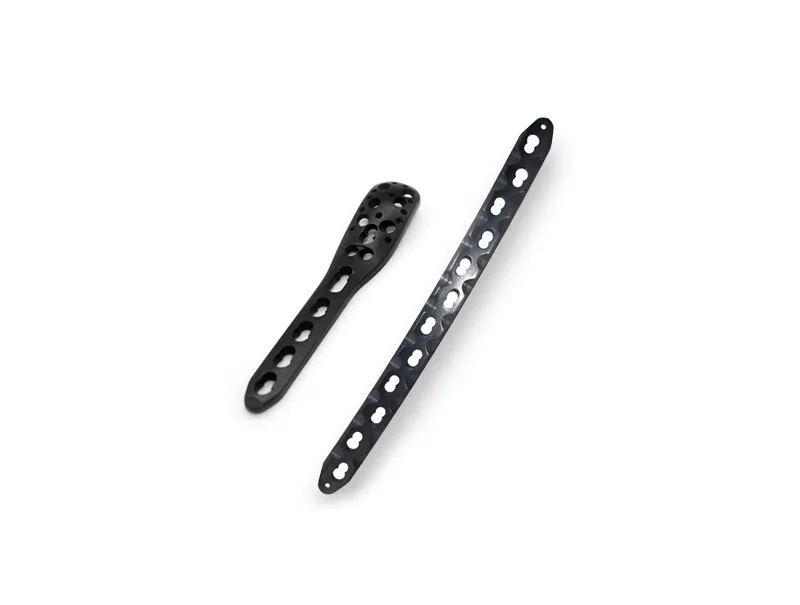

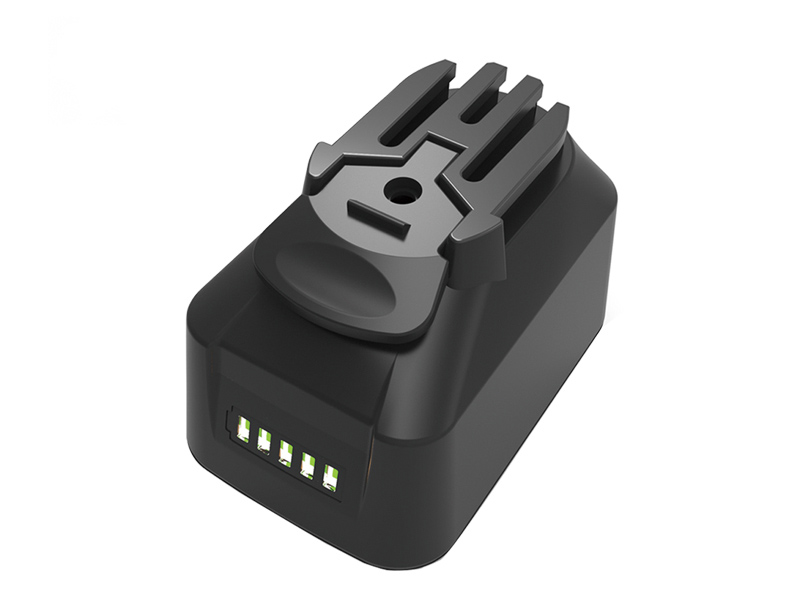

Product1 |

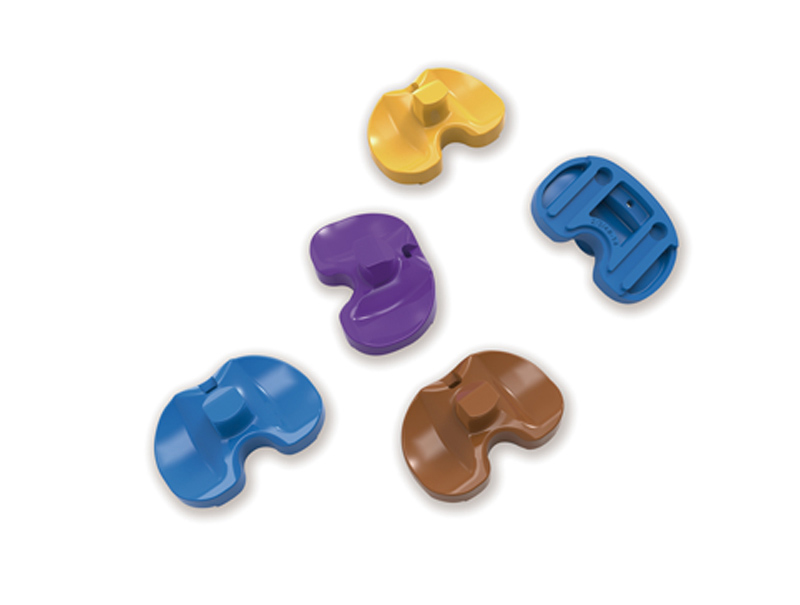

Product2 |
